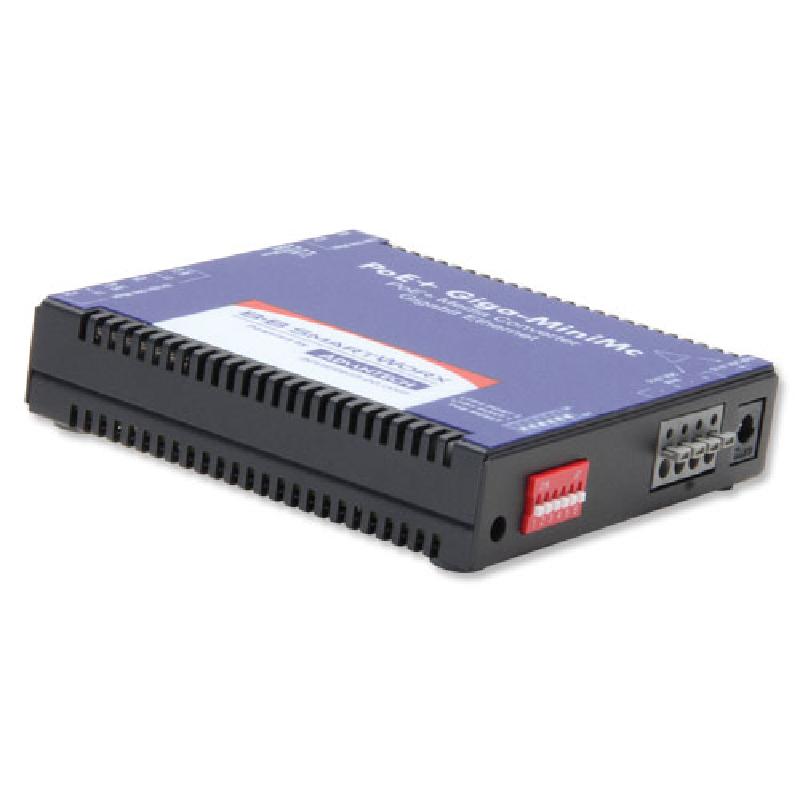

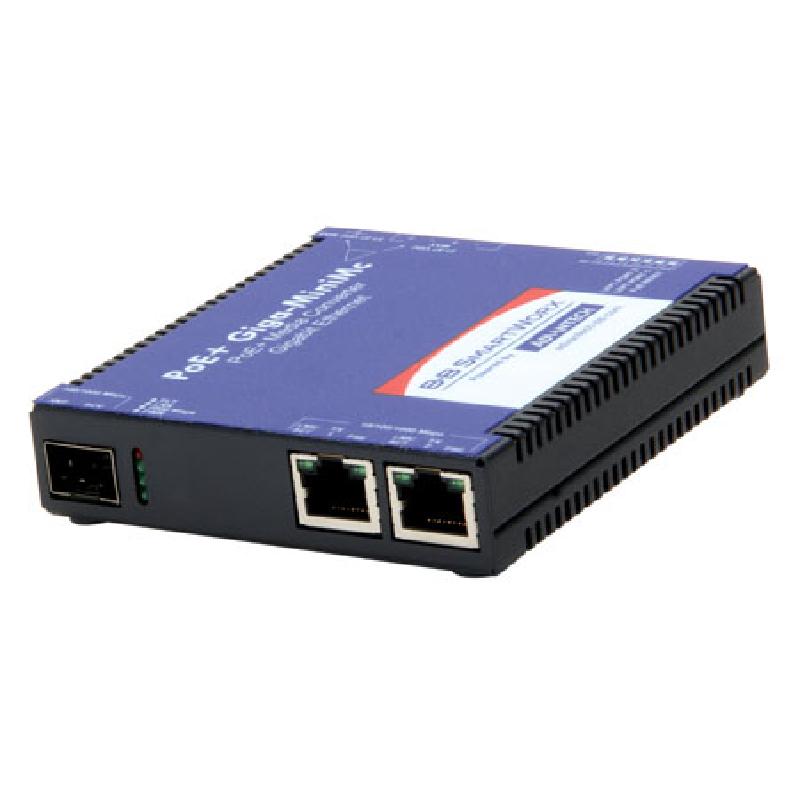

研華BB-857-11911 PoE+ Giga-MiniMc LFPT, 2TX/SFP

• Rugged stand-alone metal enclosure with compact external power supply
• Supports Jumbo Frames (up to 10240 bytes)
• Multiple mounting options (Desktop, DIN Rail or Wall-mount)
• Features configurable PoE Reset on Fiber LOS
• Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (25.5W) standards
• Link Fault Pass Through

• The PoE Giga-MiniMc/LFPT are low-cost, compact, multi-port media converters that support both PoE standards. Utilizing their flexibility and compact size, interior private network applications can further benefit from the ever-expanding versatility of the MiniMc product line.

  Featuring 2-10/100/1000Base-T copper UTP ports and one SFP uplink port that supports fiber SFP, the PoE Giga-MiniMc are Power Source Equipment (PSE) devices. The PoE Giga-MiniMc is capable of powering up to two Powered Devices (PD) over standard CAT5 cable or better. The PoE Giga-MiniMc/LFPT is able to power high-power devices such as touch panels, PTZ (pan-tilt-zoom) IP surveillance cameras, and RFID readers that require more power than the typical 15.4 W provided by standard PSE devices.

  The PoE Giga-MiniMc/LFPT models are fully compatible with the IEEE 802.3af/at standards to ensure a seamless integration into your network. Enhanced features include store-and-forward, Autocross, an LFPT DIP Switch, and PoE reset on fiber loss of signal. PoE reset is an advanced function that, when enabled, will force the PSE output power to reset when LINK state is lost on the SFP port.
